The single-blade cutting deck is made entirely of steel, the blade ends are floating shock-resistant with a special cutting edge profile that favors precise cutting in all grass conditions.
The cutting height adjustment ranges from 2.5 to 7.5 cm and is made by means of a 6-position lever. The same lever has an additional transfer position that allows the entire cutting deck to be lifted off the ground, automatically stopping the rotation of the blades to easily overcome kerbs and obstacles.
The tension of the deck belt is self-adjusting. The entire deck is kept parallel to the ground at all times, improving cutting quality even after years of use!
The blades are engaged via an electric button located near the steering wheel that activates the PTO's electromagnetic clutch.
Side discharge cutting is practical when the grass is high, suitable for those who do not cut regularly.
The cut grass is channeled into the steel side casing. The protruding casing is constructed in accordance with standards, ensuring optimum safety for the operator. It is also equipped with an anti-skid roller.
As an additional measure to improve reliability and impact protection, the casing hinges are located on the inside of the casing.
The Mulching cut, which is ideal for regular cutting, finely chops up the cuttings, thereby promoting the re-absorption of nutrients by the soil.
In addition, Mulching cutting can be performed after the first pass in rear discharge cutting for a better finish.
The transmission consists of a hydro-static axle equipped with a fan to cool the oil, an essential feature to increase the efficiency of the transmission by reducing its operating temperature. The speed is infinitely variable from 0 to 9 km/h and allows the precise choice of forward speed.
The tilting front axle keeps the four wheels attached to the ground even in very uneven conditions.

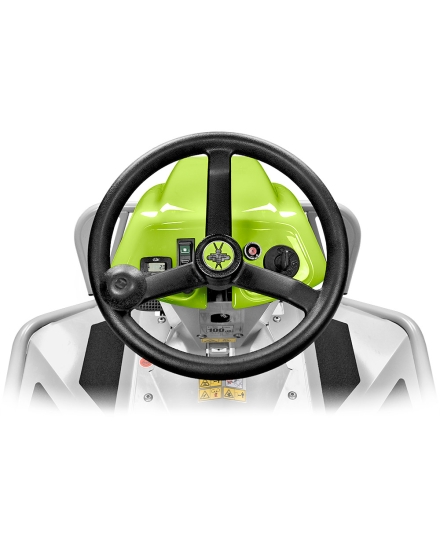

The mechanical steering is smooth and precise, the inner turning radius is 40 cm and allows excellent maneuverability even on paths full of obstacles such as plants, lampposts, etc.
The MD 15 is compact, with a low center of gravity, optimal weight distribution, and is built for maximum stability and operator safety.
The seat placed close to the ground, the endothermic engine with vertical axis positioned very low down, the ventral plate placed exactly between the 4 wheels and the battery placed on the front axle, make the machine exceptionally stable.
The feet rest on a foot board that can be adjusted in 2 positions to meet the needs of all users.
| Engine |
Loncin LC1P92F Start elettrico con batteria 12v Supply benzina 452 cc, 1 Cylinder 12.0 HP, 9.0 KW - 15.0 HP Raffreddato ad aria Filtro aria a secco con cartucce intercambiabili |
| Fuel tank capacity | 7 L |
| Transmission | Hydrostatic |
| Traction | 2WD |
| PTO | Electromagnetic clutch with flat belt |
| Cutter deck | Single-blade deck with floating ends for side discharge or mulching, with “QUICK SHIFT” lever for changing cutting mode. Belt drive |
| Cutting configuration | rotating single blade with floating terminals |
| Cutting deck width | 113 cm |
| Cutting width | 83 cm |
| Cutting height | 6 cutting positions from 2,5 to 7,5 cm plus 1 for transfer |
| Peripheral blade speed | 72 m/s |
| Front tyres | Turf 13x5.00-6 |
| Rear tyres | Turf 16x7.50-8 |
| Steering system | Steering wheel, with forward and reverse lever |
| Speed | From 0 to 9 km/h, reverse speed from 0 to 6 km/h |
| Inner turning radius | 40 cm |
| Seat | Comfort seat, cushioned and adjustable. With roll bar |
| Parking brake | rear parking disc brake |
| Mowing capacity per hour (indicative) | 4500 m²/h |
| Standard features | tow bar, front headlight and rear rack |
| Length | 178 cm |
| Width | 113 cm |
| Height | 89 cm |
| Weight | 235 kg |
