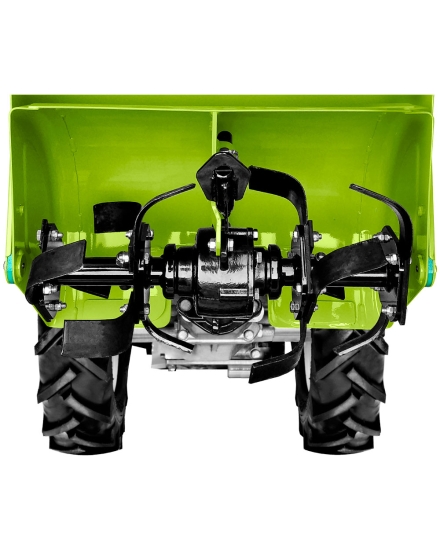

The width of the tiller is 50 cm and its tempered steel tines have a diameter of 26 cm.
Tilling depth can be changed into 5 different positions by adjusting the rear skid.
This skid is particularly useful for works on sandy and soft soils, because it prevents the tiller from sinking excessively into the ground.
There is no need to push down hard on the handlebar, just allow the walking tractor to move forwards.
As all Grillo machines, the G46 was designed to ensure total safety while working.
G 46 comes with the Honda GX200 petrol engine, that is fitted with a robust engine guard.
Forward gear and PTO are engaged independently from each other.
G46 is equipped with an active coupling, ensuring therefore maximum safety and handiness.
When the lever is released the wheels stop immediately whilst the engine keeps on running.
The Grillo active clutch guarantees perfect safety work.
The height-adjustable handlebar adapts to each operator and to any ground depth.
The side positions of the handlebar of the G46 prevent re-entering on the tilled ground, leaving it therefore so even.
One hand is enough to till with the G46, the contra-rotating tiller allows the walking tractor to perfectly adhere to the ground.

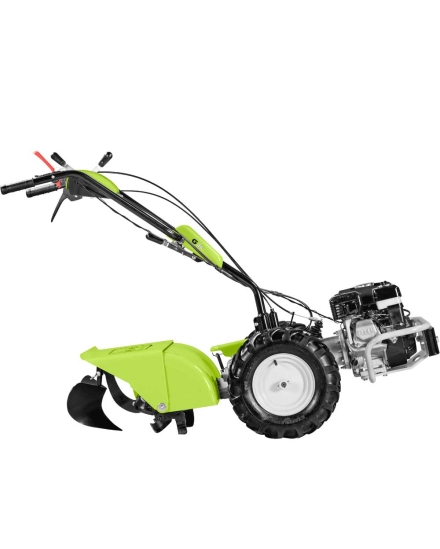

The furrower can be mounted behind the rotary tiller to obtain irrigation or seeding furrows.
G 46 is equipped with a lever that disconnects the wheels from the gearbox, making therefore transfers easier when the engine is off.
| Engine |
Honda GX200 OHV Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 3.1 L |
| Transmission | with oil bath gears |
| Gearbox | 1 forward gear and 1 reverse gear |
| Standard rotary tiller | Tiller with contra-rotating tines. Working width 50 cm. |
| Hoes system diametre | 26 cm |
| Working width | 50 cm |
| Working depth | 13 cm |
| P.T.O. | 965 rpm with anticlockwise rotation |
| Available tyres | 4.00-8 tractor |
| Speed | With 4.00-8 wheels forward gear 1,6 km/h, reverse gear 1,6 km/h |
| Handlebar | with height and side adjustment |
| External sizes of the wheels | 50 cm with 4.00-8 tractor wheels |
| Weight | 98 kg |
