A powerful and versatile walking tractor! Differential and brakes come as a standard feature
The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears and 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.

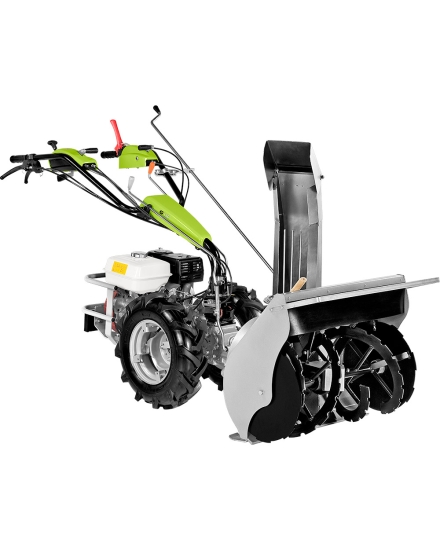

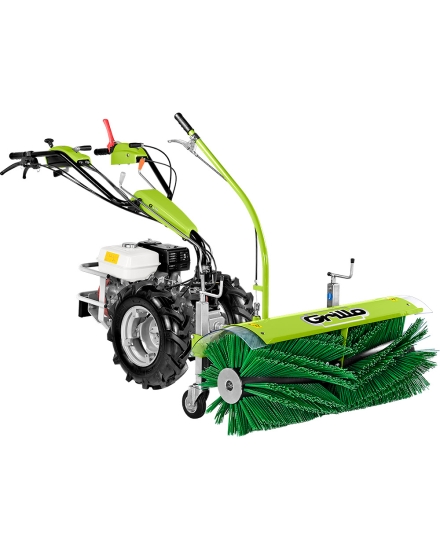

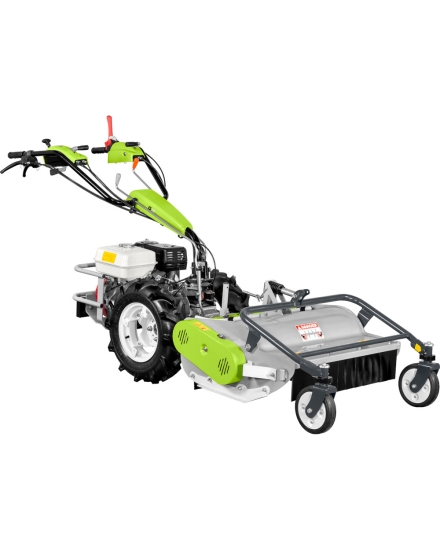

A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.
The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.
To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.
| Engine |
Kohler KD15 440 Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply diesel 441 cc, 1 Cylinder 11.0 HP, 8.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX390 OHV Start manuale a fune autoavvolgente Supply benzina 389 cc, 1 Cylinder 11.7 HP, 8.7 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 6,1 Lt. (GX390) - 5,0 Lt. (KD15 440) |
| Transmission | Gear type in oil bath |
| Gearbox | With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears. |
| Reverse gear unit | Rapid through lever |
| Differential locking | With lock device through lever |
| Standard rotary tiller | Adjustable, with tines x4. Working width: 68 cm. |
| Hoes system diametre | 32 cm |
| Working width | Adjustable 37, 47, 58, 68 cm |
| Working depth | 16 cm |
| Item no. standard rotary tiller | 984611 |
| P.T.O. | 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation). |
| Available tyres | 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed) |
| Speed | With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h. |
| Service brake | Drum brake, as a standard feature |
| Handlebar | With height and side adjustment and reversible. |
| Weight | 142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels. |
