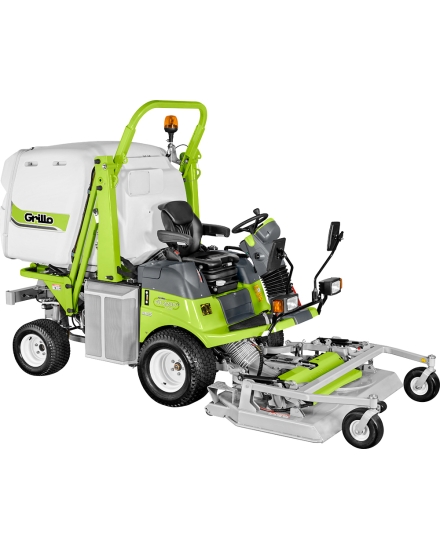

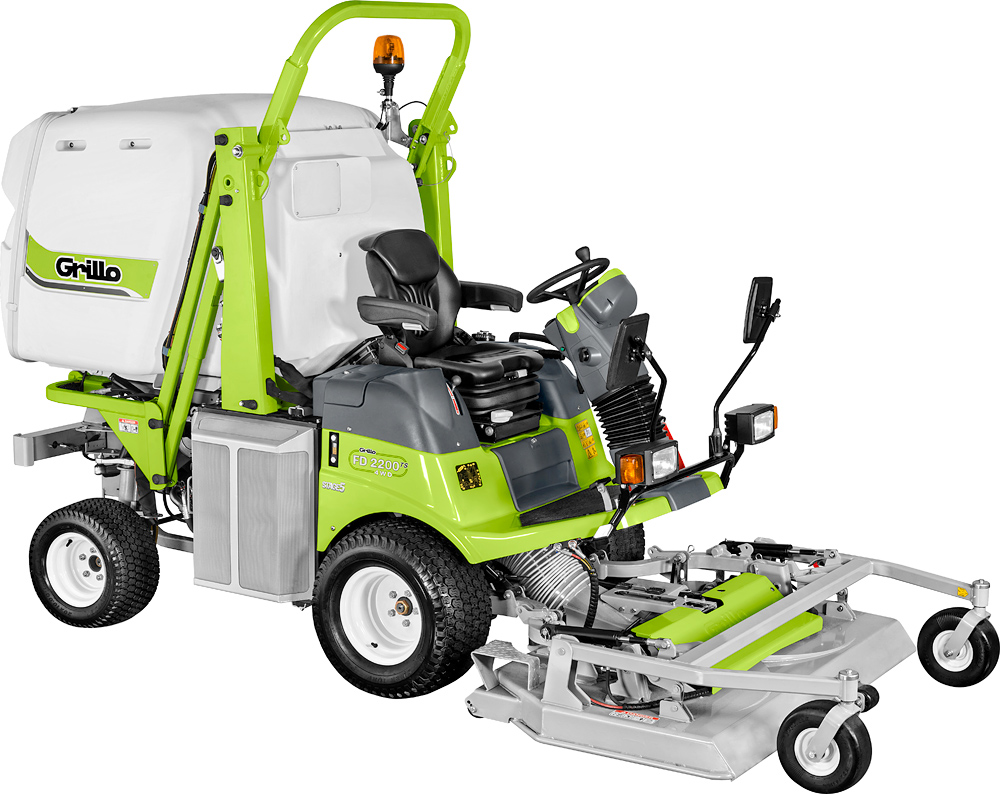

Power, precision, and reliability come together in the FD 2200 TS Stage 5, the all-wheel drive front mower designed to guarantee impeccable results even in the most demanding conditions. With a turning radius of just 60 cm, a corrosion-resistant square tube frame and 18 cm ground clearance, it ensures maneuverability and stability on any terrain, even on slopes or sidewalks. Six-ply tires and service and parking drum brakes complete the robust and safe structure.
It is equipped with a YANMAR 4TNV88C Stage 5 engine: 4 cylinders, 2190 cc and 47 HP, mounted on hydraulic anti-vibration mounts, calibrated at 2950 rpm to reduce noise and vibration. The fuel system incorporates diesel filters and a decanter, while the double air filter with self-cleaning pre-filter ensures efficiency and reduced maintenance. A dual air/oil radiator with automatic reverse hydraulic fan maintains the ideal temperature even in extreme conditions, shutting down the engine and alerting the operator in case of overheating.
The Grillo 4WD hydrostatic transmission with variable displacement pump and four hydraulic motors allows speeds from 0 to 21 km/h, smooth control, and automatic differential lock for constant traction, even when turning.
The 155 cm cutting deck, with height adjustment and hydraulic tilt, is made of reinforced steel with solid anti-puncture wheels. The counter-rotating blades, mounted on discs with shockproof terminals, ensure a clean cut and protect the transmission. The mulching kit is included as standard.
For collection, a 40 cm turbine made of special wear-resistant steel, with dual speed and hydraulic motor, compacts the grass into the large 1400 liter grass catcher, which can be hydraulically tipped up to 250 cm in height and has a 50 cm rear overhang for convenient unloading onto a truck. The motorized deflector distributes the material evenly, while the sealed joints reduce dispersion and noise.
Driving comfort is guaranteed by the super-comfortable operator's seat: adjustable air suspension seat, armrests, adjustable steering column, seat belts, and dashboard with a screen that displays all parameters in real time, with diagnostics and data transmission. All hydraulic functions, such as cutting height adjustment, lifting and tipping of the grass catcher or plate, are controlled by electric buttons on the dashboard.
Available accessories include: 160 cm LMP three-function plate, mulcher with or without collection, 175 cm snow blade, scarifier kit, heated or air-conditioned cab, and 180 cm plate with hydraulic adjustment and tilting. ROPS-certified roll bar and road approval kit complete the equipment.
The FD 2200 TS Stage 5 is the ideal choice for those seeking the ultimate in professionalism, comfort, and safety when maintaining parks, public green spaces, and large areas.
