The Grillo FM 2200 is equipped as standard, at the front, with a hydraulic PTO that can be operated by means of an electric button.
It allows commercial attachments such as salt spreaders, hedge trimmers, brushes, etc.
It delivers up to 34 l/1' at 230 bar.
The oil used by the hydraulic PTO is cooled by a radiator.
Uses 3/8" front-mounted quick couplings.

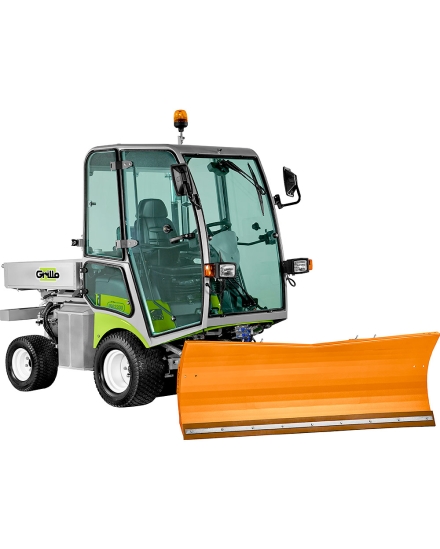

FM 2200 has the LMP 160 3-blade deck with side/mulching/rear discharge, 160 cm mulcher, and 175 cm snow blade.
It is also equipped with 2 hydraulic services for handling accessories, with a capacity of up to 34 l/1' at 230 bar.

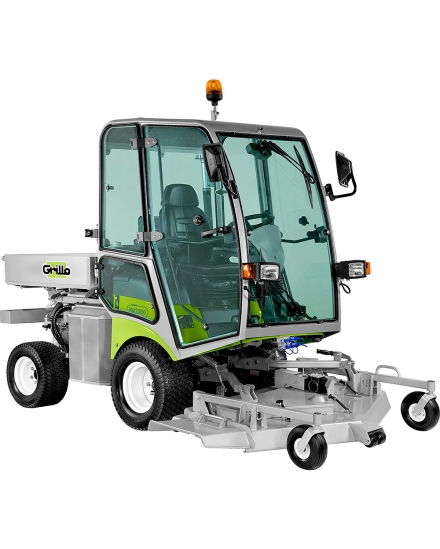

The cab with optional heating allows you to continue working in comfort even during the coldest periods.
FM 2200 has a steel caisson with aluminum sides, size 105×105 cm, which once raised by means of a gas spring, allows easy access to the engine compartment cover.
It is also equipped with a self-cleaning radiator, with an electric fan that reverses the direction of rotation to eliminate any grass clippings on the radiator: this system is automatic and regulated by a sensor, but can also be activated manually.
The PTO clutch is hydraulic multi-plate with built-in blade brake and electrically actuated via a push button.
It guarantees high torque transmission with low wear and consequently long service life.
The friction-type blade brake is adjustable so that its efficiency can be maintained over time, recovering the usage of the friction material. In addition, because of the arms used by Grillo, tipping and maintenance of the plates and replacement of accessories are easy.
The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FM 2200 4WD is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FM 2200 4WD includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.
| Engine |
Yanmar 3TNV88C Stage5 Start elettrico con batteria 12v Supply diesel 1642 cc, 3 Cylinders 37.0 HP, 27.5 KW Raffreddato a liquido con elettroventola e dotato di dispositivo automatico di pulizia radiatore Filtro aria a secco con cartucce intercambiabili, cartuccia di sicurezza e prefiltro |
| Fuel tank capacity | 50 L |
| Hydraulic oil tank | 25 L |
| Transmission | Hydraulics, permanent integral with 4 hydraulic motors |
| Traction | 4WD |
| PTO | Hydraulic clutch with cardan shaft to the cutting deck |
| Differential locking | Self-engaging and manual by pushing the button |
| Cutter deck | Three-blade front deck. Gear distribution. Hydraulic lifting. Solid puncture-proof wheels |
| Cutting deck width | 192 cm |
| Cutting width | 160 cm |
| Cutting height | From 2 to 10 cm, hydraulic adjustment |
| Load bed | Body with tilting rear extension, manual tipping by means of gas springs. Load bed with aluminium side extensions, ground made of iron. Rear board can be opened |
| Front tyres | Turf 24x12.00-12 |
| Rear tyres | Turf 20x10.00-10 |
| Steering system | Steering wheel with hydraulic drive, with pedal operated forward and reverse gears |
| Speed | From 0 to 20 km/h |
| Inner turning radius | 62 cm |
| Seat | Comfortable seat equipped with springs with arm-rests and adjustable |
| Mowing capacity per hour (indicative) | 15500 m²/h |
| Standard features | Twin-hydraulic takes-off (max. pressure 170 bar, max. capacity 34L/1’ at 2400 rpm) Additional hydraulic push-button operated PTO (max pressure 230 bar, max capacity 34 L/1' a 2400 rpm). Lights and indicator kit |
| Length | 250 cm without cutting deck - 342 cm with cutting deck |
| Width | 135 cm without cutting deck - 192 cm with cutting deck |
| Height | 185 cm with the roll bar let down – 220 cm with raised roll bar |
| Weight | 1127 kg without cutting deck - 1322 kg with cutting deck [cod. 9M0412] |
