The cutting deck with collection can be converted into a mulching deck or with lateral discharge by utilising the optional kits

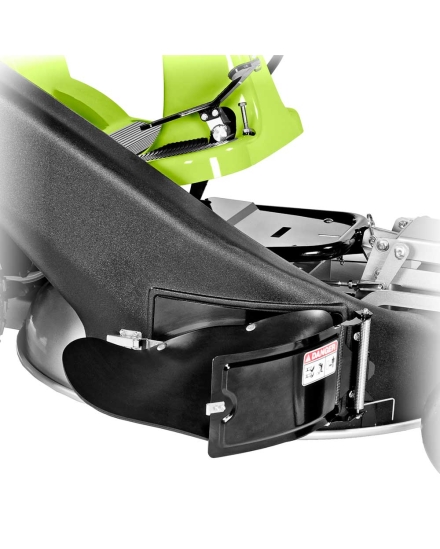

.The cut grass is fed into the discharge chute which leads directly to the grass catcher with
200 L capacity.
The special blade profile of the FD 220 R allows extraordinarily cutting and collection even when the grass is humid.
The floating cutting deck ensures a perfect cut even on undulating grounds. The rear swinging axle, the tyres with antiskid profile, allow, together with the pressure adjustment of the cutting deck on the ground, to follow with extreme precision any bumps and fold, and therefore eliminate the possibility of scalping the grass.
The cutter deck’s pressure adjustment on the ground is made by activating a simple hand wheel positioned below the driver’s seat; the device modifies the weight balance between cutting deck and drive axle of the FD 220 R for a greater adherence on slopes.
Speed ranges from 0 to 9km/h is continuously adjustable. Maintenance of your garden will be rapid and to a high quality standard.
The blades are automatically disengaged once the grass catcher is full; the cutting process will be stopped in order to avoid blockages. There is also the possibility to choose the “buzzer indicating” option (the simple removal of an electric connector is all that is needed) that signals that the catcher is full.

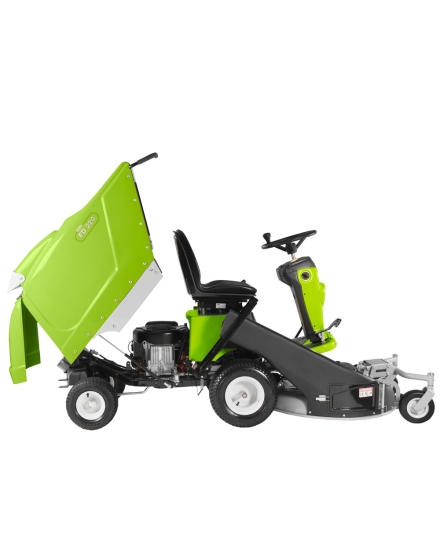

Emptying the FD 220 R’s grass catcher is that easy! Simply reverse to your designated area, it will be sufficient to lift the lever next to the driver’s seat by remaining seated; the grass catcher will lift up and open automatically, completely emptying itself.
The blade operates via an electromagnetic clutch, it is push button operated and has an LED to indicate that it is functioning.
The disc parking brake is controlled by a practical lever, it allows you to get off the machine with the engine running, and the cutter is disengaged.
The design of Grillo FD220 R does not leave you indifferent! Immediately striking are the modern lines of the fairing and the attention to detail!
The driver’s position of the FD 220 R is ergonomic. The dampened and adjustable seat, together with the height adjustable steering wheel, makes this a lawnmower to enjoy for cutting grass or even leaf collection.
Once you have finished using the machine, cleaning the cutting deck will always be quick and simple for everyone! The cutting deck is equipped with a quick coupling so that by connecting a water hose the whole cutting deck can be cleaned with minimal effort.
The Grillo FD 220 R has a pedal for raising the cutter deck, this allows to traverse obstacles or kerbs. Raising the cutting deck is a simple procedure. Once the cutting deck has been raised you can easily access the detachable blades tips for maintenance. It’s also possible to remove the cutting deck from the machine and to put it on one side with a few simple operations
The transmission components and the engine transmission parts are accessible by lifting the grass catcher or the seat.
| Engine |
Loncin LC1P92F Start elettrico con batteria 12v Supply benzina 452 cc, 1 Cylinder 12.0 HP, 9.0 KW - 15.0 HP Raffreddato ad aria Filtro aria a secco con cartucce intercambiabili Briggs & Stratton 16 Vanguard V-Twin OHV Start elettrico con batteria 12v Supply benzina 479 cc, 2 Cylinders 14.0 HP, 10.3 KW - 16.0 HP Raffreddato ad aria Filtro aria a secco con cartucce intercambiabili |
| Fuel tank capacity | 7 L |
| Transmission | Hydrostatic transmission with differential |
| Traction | 2WD |
| PTO | Electromagnetic clutch with flat belt |
| Cutter deck | Single-blade front deck with collection. Belt drive. Manual pedal lift. Solid puncture-proof wheels. Washout port |
| Cutting deck width | 86 cm |
| Cutting width | 80 cm |
| Cutting height | 7 cutting positions from 30 to 90 mm height |
| Grass catcher charging system | Direct |
| Grass collector capacity | 200 l |
| Grass collector discharging system | Manual system with automatic opening relief spring |
| Maximal discharging height | On the ground |
| Front tyres | Turf 16x7.50-8 |
| Rear tyres | Turf 13x5.00-6 |
| Steering system | Driving system with steering wheel and pedal-operated forward and reverse speeds |
| Speed | From 0 to 9 km/h |
| Inner turning radius | 30 cm |
| Seat | Spring-loaded seat |
| Parking brake | disk brake |
| Mowing capacity per hour (indicative) | 4000 m²/h |

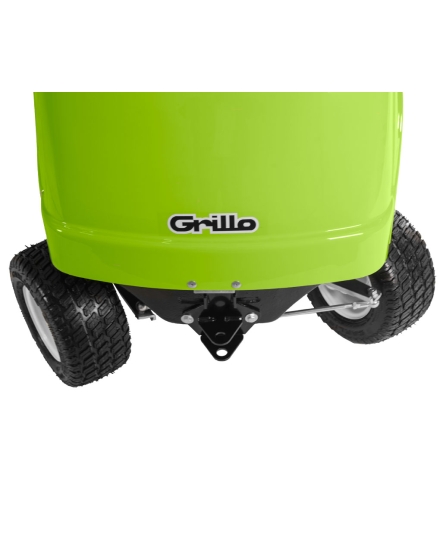

| Standard features | tow bar |
| Length | 234,5 cm |
| Width | 86 cm |
| Height | 114 cm |
| Weight | Weight with Loncin engine: 275 kg. Weight with Vanguard 16 HP engine: 280 kg |
