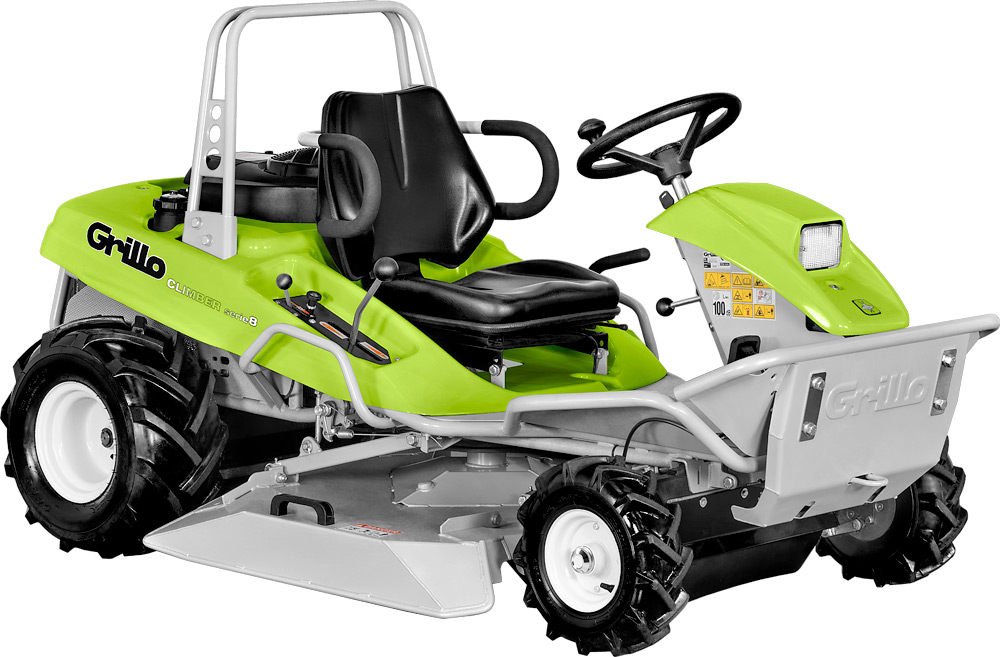

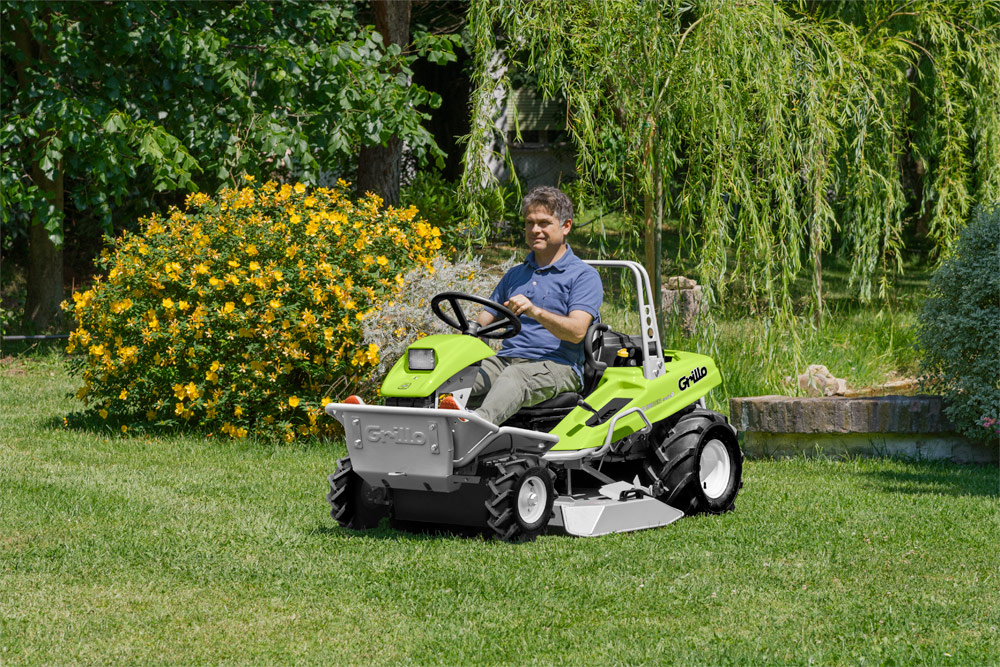

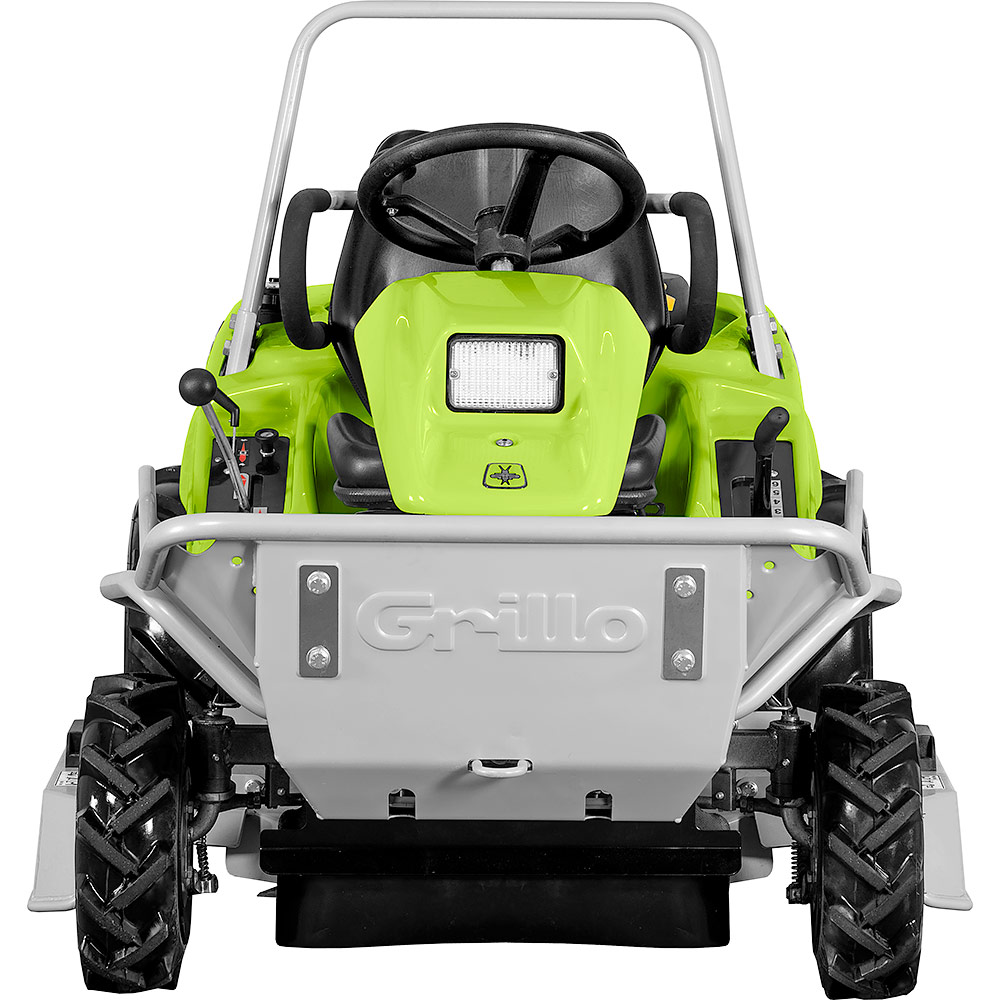

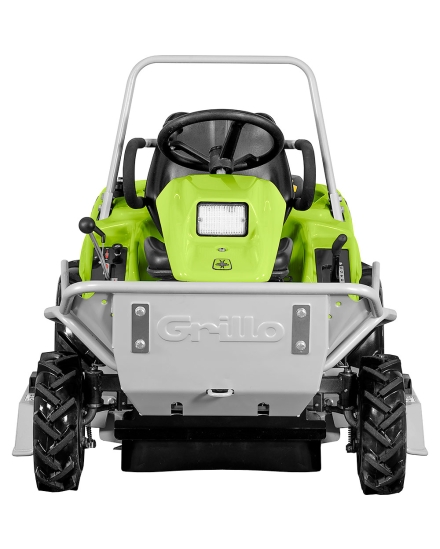

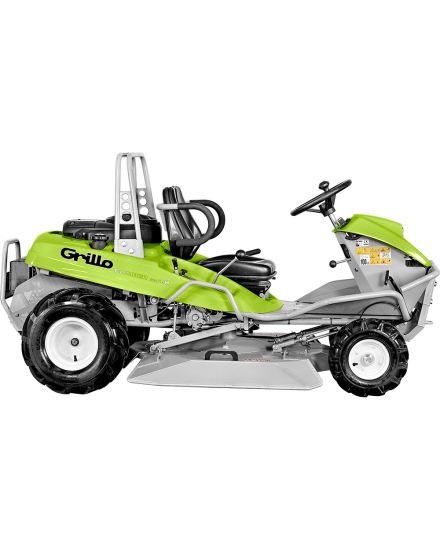

Grillo Climber 8.22 is a hydrostatic single-blade brush-cutter featuring innovative components resulting in excellent performance.

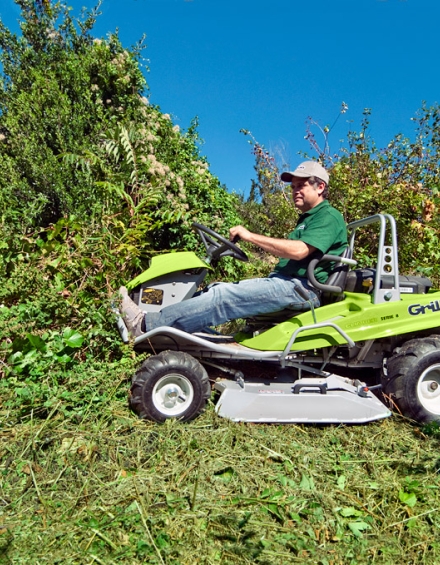

It has a professional hydrostatic axle with integrated differential lock and service brake on the 4 wheels, an electromagnetic clutch, light and smooth steering, a cutter deck with internal baffles to evenly distribute the cut grass, a wider cutting height range to make transfers and driving over kerbs and bumps easier, bigger wheels 3.50-6. Impressive performance on slopes and when cutting shrubs and high grass.
Widely used in agriculture and ideal in vineyards, olive groves and underneath foliage. 60 cm steering radius.
Transfer speed ranges from 0 up 10 km/h. The rear wheels 18×9.50-8 are comfortable and totally safe on slopes.
| Engine |
Briggs & Stratton 7220 PXi PROFESSIONAL Start elettrico con batteria 12v Supply benzina 656 cc, 2 Cylinders 18.0 HP, 13.2 KW - 22.0 HP Raffreddato ad aria Filtro aria a secco |
| Fuel tank capacity | 7 L |
| Transmission | Hydrostatic |
| Traction | 2WD |
| PTO | Electromagnetic clutch with flat belt |
| Differential locking | With pedal engagement |
| Cutter deck | Single-blade rear discharge deck. Belt drive |
| Cutting configuration | 1 rotating blade |
| Cutting deck width | 99 cm |
| Cutting width | 91 cm |
| Cutting height | Continuously adjustable from 3,5 cm to 11 cm |
| Front tyres | 3.50-6 TRACTOR and puncture-proof treated |
| Rear tyres | 18x9.50-8 TRACTOR |
| Steering system | Steering wheel, with forward and reverse lever |
| Speed | From 0 to 10 km/h, reverse gear from 0 to 6 km/h |
| Inner turning radius | 60 cm |
| Seat | Sprung and adjustable, equipped with roll-bar. |
| Service brake | Service brake on the front and rear wheels with pedal engagement. |
| Parking brake | on the rear wheels with level engagement. |
| Mowing capacity per hour (indicative) | 7000 m²/h |
| Length | 196,5 cm |
| Width | 99 cm |
| Height | 98 cm |
| Weight | 290 kg |
