The cutting height is adjusted via a soft and comfortable lever. The cutting deck stops in the chosen position when the lever is released. Blades are engaged via an electric switch located near to the steering wheel. The electromagnetic clutch is fitted with a blade brake. The single-blade cutting deck has a working width of 98 cm, the progressive and assisted cutting height ranges from a minimum of 3,5 cm to a maximum of 13,5 cm. This 10 cm range allows the operator to easily negotiate kerbs and obstacles and allows them to work on uneven grounds.
The whole cutting system is always kept parallel to the ground, this ensures top cutting quality even after years of service.

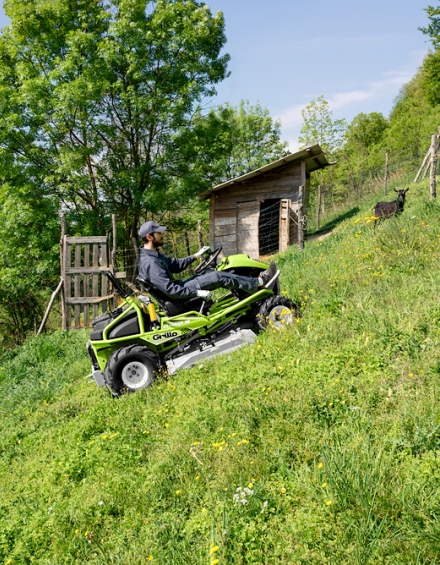

Thanks to the four-wheel drive the operator can stop on slopes just by using the forward lever and can engage reverse in total safety with no wheel skidding.

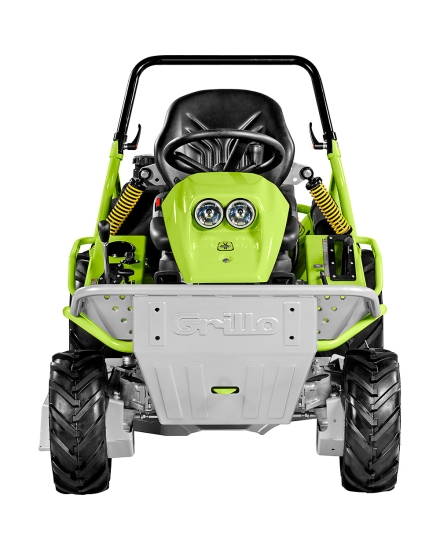

The hydrostatic motors on the front axle are protected by an anti-shock steel plate.
The Climber 10 is equipped with major stainless steel hydraulic pipes connecting the two hydraulic axles. Together with a cooling fan placed on the rear axle, they keep the hydraulic oil working pressure low to guarantee high performances even under the most demanding working conditions.
Tractor wheels ensure adherence on irrgular grounds. In addition front wheels are puncture-proof.
Each single component, from the simplest to the most complex, is of high quality. Frame, handlebar, cutting deck, are all designed and built by Grillo using exclusively premium materials and modern technology to ensure 100% controlled, high quality.
Painting of Grillo machines incorporates a double electrostatic powder coating process. At the first stage are the washing baths and preparation, then a first protective coat is applied which is then baked in a special oven, this has proven to be the best base for the application of the finish. The second coat consists of powder coating and still further baking in an oven at 190°C, this then produces the characteristic hardness and shine.
Assembling operations of Climber 10 AWD 27 are carried out meticulously by specialist staff.
It then undergoes a rigorous final test with its engine running to ensure that all of its functions work properly.
More proof of the quality of Grillo products.
| Engine |
Briggs & Stratton Series 8290 CXi Commercial Start elettrico con batteria 12v Supply benzina 724 cc, 2 Cylinders 22.0 HP, 16.2 KW Raffreddato ad aria Filtro aria a secco con cartucce intercambiabili |
| Fuel tank capacity | 13 L |
| Transmission | Hydrostatic |
| Traction | 4WD |
| PTO | Electromagnetic clutch with flat belt |
| Differential locking | Differencial lock by pedal action |
| Cutter deck | Single-blade rear discharge deck. Belt drive |
| Cutting configuration | 1 rotating blade |
| Cutting deck width | 108 cm |
| Cutting width | 98 cm |
| Cutting height | From 3.5 to 13.5 cm, with continuous adjustment |
| Peripheral blade speed | 87 m/1" |
| Front tyres | 16x6.50-8 tractor. With anti-puncture treatment as standard feature. |
| Rear tyres | 20×10.00-8 TRACTOR |
| Steering system | Steering wheel, with forward and reverse lever |
| Speed | From 0 to 9 km/h, reverse from 0 to 8 km/h |
| Inner turning radius | 76 cm |
| Seat | Comfort seat with suspension adjustable according to the operator's weight. Spring-loaded seat support with roll bar |
| Parking brake | On the rear wheels with lever engagement. |
| Mowing capacity per hour (indicative) | 7500 m²/h |
| Length | 206 cm |
| Width | 108 cm |
| Height | 118,5 cm |
| Weight | 383 kg |
