GZ 223

Power and variable width

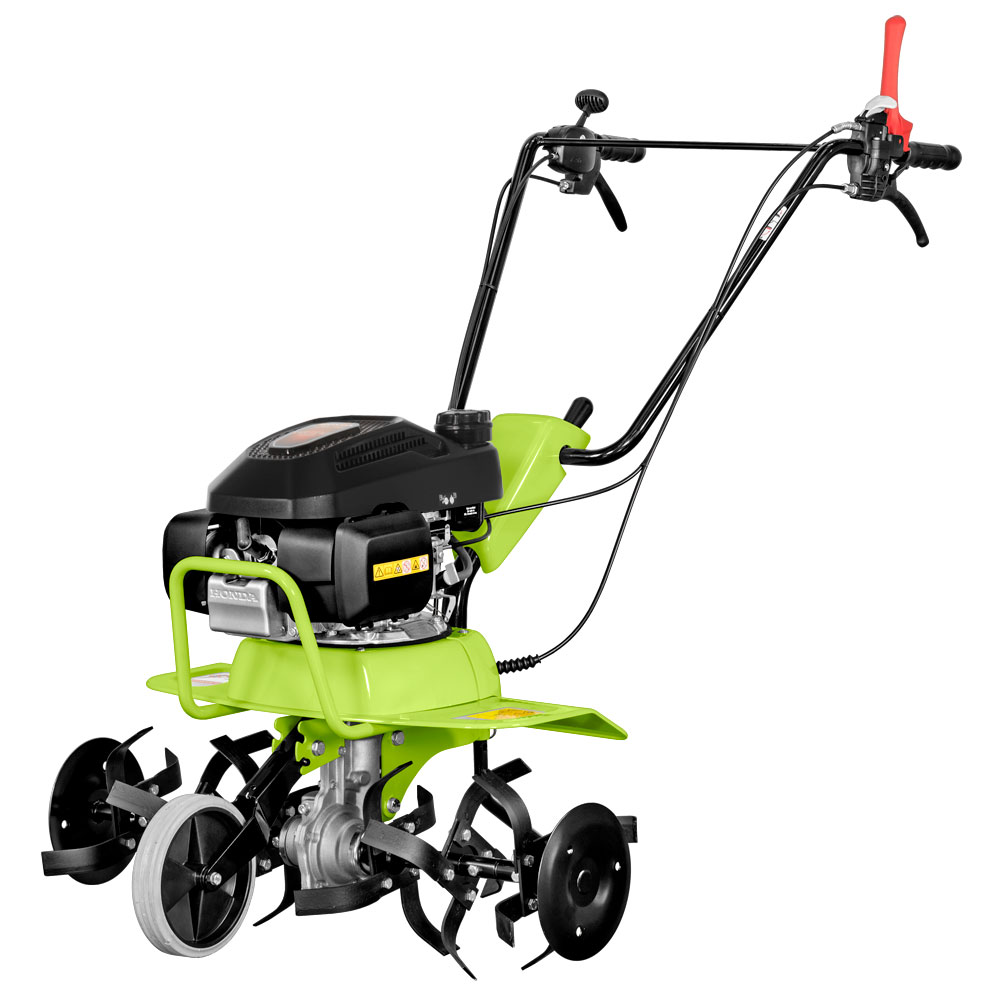

The GZ 223 is a compact rotavator that combines power and control to tackle even the toughest terrain. The 4.8 HP Honda GCV170 engine delivers high torque, while forward and reverse gears allow for easy maneuvering.
The 80 cm wide six-star tiller can be reduced to 57 or 35 cm by removing two or four stars, adapting to every need. The tiller speed varies up to 155 rpm, ideal for both slow, deep tilling and faster, shallower tilling. The active engagement ensures safety: the tines stop immediately when the lever is released.
The height- and side-adjustable handlebar, without screws or knobs, allows you to work without treading on the ground or near hedges and fences. The transport wheel facilitates transport, while the optional furrower, which can be installed without tools, allows you to create regular furrows for sowing and irrigation.
Weighing 45kg, the GZ 223 offers professional performance in a compact body, perfect for demanding vegetable gardens and gardens.
Engine Honda GCV170 OHC
Start manuale a fune autoavvolgente
Supply benzina
166 cc, 1 Cylinder
4.8 HP, 3.6 KW
Raffreddato ad aria
Filtro aria a secco con cartucce intercambiabili
Fuel tank capacity 0,9 L
Transmission Endless screw in oil bath
Gearbox 1 forward gear + 1 reverse gear
Clutch With active coupling
Standard rotary tiller Working width with 6 tines is 75 cm, 80 cm with tillers
Hoes system diametre 28 cm
Working depth 28 cm
Max. revolutions tiller 155 rpm
Handlebar Height and side adjustment
Length 145 cm
Height Maximum 110 cm, minimum 66 cm
Weight 45 kg
GZ 223
