The Grillo G 107 d is a walking tractor equipped with a reversible handlebar and ideal for working on medium-sized areas. The six-speed gearbox with gears in oil-bath 3 forward gears and 3 reverse gears. The differential lock comes as a standard feature on this machine.
The G 107 d is also fitted with an automatic quick gear-inverter, a device that manages the drive when turning the handlebar of 180°.
The reverse gear handlebar is placed on the handlebar, and is easily achievable.
Together with its broad offer implements and its reversible handlebar, G 107 d turns out to be an extremely versatile walking tractor.
The implements can be attached via a flanged coupling or a quick coupling, available as an extra, without the need of tools.

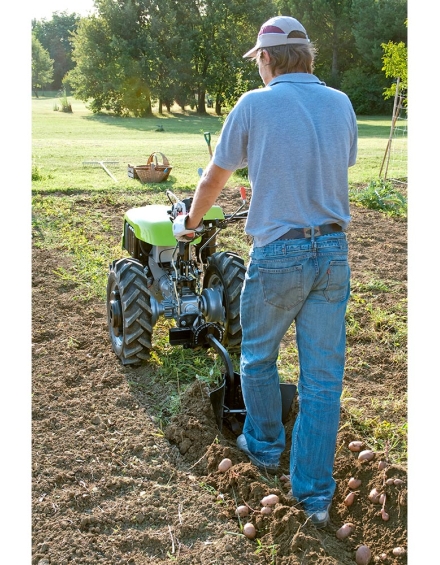

A plough kit containing larger wheels, adjustable extensions, 180° turn-wrest plough and wheel weights is available as an optional attachment.
To achieve a greater stability on slopes you can widen the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.
| Engine |
Loncin G300FA Start manuale a fune autoavvolgente Supply benzina 302 cc, 1 Cylinder 9.3 HP, 6.8 KW Raffreddato ad aria Filtro aria a secco Kohler KD15 440 Start manuale a fune autoavvolgente Supply diesel 441 cc, 1 Cylinder 11.0 HP, 8.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Kohler KD15 440 Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply diesel 441 cc, 1 Cylinder 11.0 HP, 8.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Honda GX270 OHV Start manuale a fune autoavvolgente Supply benzina 270 cc, 1 Cylinder 8.4 HP, 6.3 KW Raffreddato ad aria Filtro aria a bagno d'olio Rato R300D Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply benzina 301 cc, 1 Cylinder 8.2 HP, 6.0 KW Raffreddato ad aria Filtro aria a secco |
| Fuel tank capacity | 5.3 L eng. GX270 - 5.4 L eng. R300D - 6.1 L eng. G300FA - 5.0 L eng. KD15 440 |
| Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 3 forward gears + 3 reverse gears. The sickle bar version has 3 forward gears + 3 reverse gears |
| Reverse gear unit | Inverter: rapid type with lever |
| Clutch | conic active |
| Differential locking | Differential with locking device by lever on the handlebar |

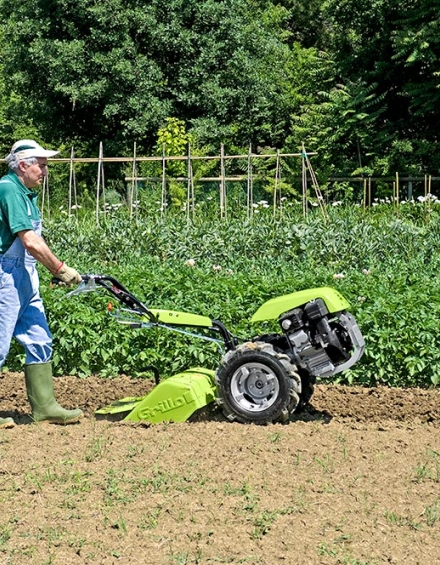

| Standard rotary tiller | Adjustable rotary tiller with x 4 tines, includes extension kits. Working width 680 mm |
| Hoes system diametre | 32 cm |
| Working width | Adjustable at 680, 470 at 370 mm |
| Working depth | 16 cm |
| Item no. standard rotary tiller | 984611 |
| P.T.O. | 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version. |
| Available tyres | Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels Tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 |
| Speed | With 5.00-10 wheels 1st gear 1,3 km/h, 2nd gear 3,1 km/h, 3rd gear 3,6 km/h |
| Service brake | Brake drum (kit upon request cod. 978111) |
| Handlebar | height and side adjustment, reversible |
| Weight | Weight: standard version 136 kg |
